Building Kit - Iridium 9555 - Phone Not Included

Building Kit for Iridium 9555 - Phone Not Included

The Building Kit for the Iridium 9555 comes with everything you need to be able to use your Iridium 9555 indoors. Once installed the Ad511 Mark II Active Iridium Antenna grabs the satellite signal outdoors and brings it in to the Satstation Desktop Dock, where your Iridium 9555 is docked and ready to be used at a moments notice. Perfect for off-grid operations as well as emergency situations.

AD511 Mark II Active Iridium Antenna

AD-511 Iridium Active Antenna is designed to allow Iridium installations with up to 160 meters of coaxial RF cable, without any degradation of performance, compared to only 30 meters maximum for a standard passive antenna device.

Package consists of Active Antenna head with heavy duty alloy mounting bracket and Power Break-In Box.  This is designed to sit close to the Iridium phone device and requires a DC power input between 18 and 36vdc (Power supply not included). A 1 meter coaxial lead is supplied to connect the Iridium phone device to the Power Break-In Box.

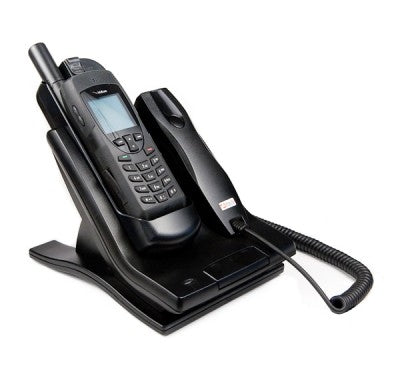

SatStation Desktop Dock

Enjoy all the features offered by the SatStation Hands Free Dock (hands-free voice and data communication) with out the installation! This desktop version of the SatStation Hands Free Dock is ideal for the office or home and portable situations. It is efficiently designed to lay on a flat surface and blend into any professional environment or command center. While in hands free mode it is great for conference calling. When the phone rings you can hear it loud and clear with a built in loudspeaker. The SatStation Desktop allows for better communications and the benefits of a fixed phone with a portable option! Since the dock is charging your satellite phone, you will have a fully charged phone ready to be used either at your command post or underway.

Installation Diagram
